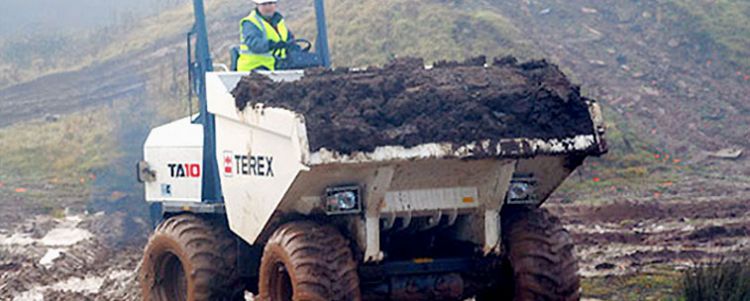

10 tonne Terex Dumper
Front TipSelf Drive Hire
Delivery for self drive hire is available next working day to areas including Scarbrough, York, Goole, Selby, Hull, Immingham, Grimsby, Scunthorpe, Lincoln, Sheffield, Doncaster, Castleford.
Manufactures Info Terex site dumpers can handle the most difficult operating conditions thanks to their robust design. These site dumpers deliver exceptional power when needed and can access the narrowest of construction sites.
Specifications
| Dimensions | millimetres | |
| A Total length | 4420 | |
| B Total width (not shown) | 2550 | |
| C Height to top of steering wheel | 2630 | |
| D Wheelbase | 2450 | |
| E Height to front lip of skip (untipped) | 1760 | |
| F Ground clearance | 410 | |
| G Height to top of ROPS (raised) | 3375 | |
| H Height to front lip of skip (tipped) | 440 | |
| Turning radius to outside of skip | 6017 | |
| Steering angle | +/- 30° | |
| Oscillation | +/- 10° |
| Model | Engine | kW (hp) @ rpm | Alternator | Output Amps | Battery Cold Start Amps | |
| 10000 | Cummins 4BT4.5 | 74 (99) @ 2000 | Belt Driven | 95 | Type 072 DIN 340A - IEC 420A |
| Dumper Speed | |||||||
| Gearbox | Transfer Box | 1st Gear | 2nd Gear | 3rd Gear | 4th Gear | Reverse | |
| ITL PowerShuttle | D3000 | 5.3kph (3.3mph) | 8.6kph (5.3mph) | 15.8kph (9.8mph) | 28kph (17.4mph) | As Forward |
| Fluid Capacities: | litres (pints) | ||||||||
| Engine Sump | Gearbox | Transfer Box | Front Axles | Rear Axles | Fuel Tank | Hydraulic Tank | Brake Fluid | Coolant | |
| 10.00 (21.1) | 13.00 (27.5) | 0.85 (1.82) | 15.00 (31.7) | 15.00 (31.7) | 67.00 (141.6) | 50.00 (105.7) | 1.20 (2.5) | 20 (42.3) |
| Load Capacities | |||||
| Payload kg | Payload Ibs | Water level - litres (yd.3) | Struck level - litres (yd.3) | Heaped - litres (yd.3) | |
| 10,000 | 22,000 | 2,490 (3.26) | 4,140 (5.42) | 5,050 (6.61) |
| Wheel and Tyres | Wheels and Tyres | ||||
| Model | Tyre Specification/Capacity | Front Tyre | Rear Tyre | Wheel Nut Torque | |
| 10000 | 500/60 x 22.5 | 4.4 bar (63 psi) | 2.2 bar (32 psi) | 450 Nm (332 Ibft) |
| Noise Levels | ||||
| Model | Engine | LWA Sound Power Level | LPA Operators Ear | |
| 10000 | Cummins 4BT4.5 | 103 dB(A) | 82.7 dB(A) |
