12.5 metre JCB 535-125 HiViz Telehandler
fitted with stabiliser legs| Max. Payload 3.5 tonne (7716 IB) |
| Max. Lift Height 12.3 metres (40ft 4 inches) |
Self Drive Hire
Delivery for self drive hire is available next working day to areas including Immingham, Hull, Scunthorpe, Grimsby, Sheffield, Doncaster, Castleford, Goole, Scarbrough, Selby, York and Lincoln.
Specifications

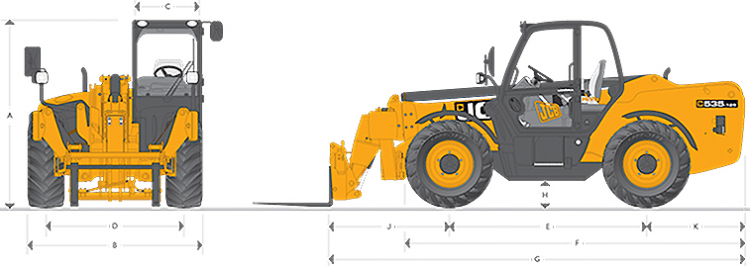

| Static Dimensions | ||
| A Overall height | 2.59 (8-6) | |
| B Overall width (over tyres) | 2.35 (7-9) | |
| C Inside width of cab | 0.94 (3-1) | |
| D Front track | 1.90 (6-3) | |
| E Wheelbase | 2.75 (9-0) | |
| F Overall length to front tyres | 4.74 (15.7) | |
| G Overall legth to front carriage | 5.80 (19-0) | |
| H Ground clearance | 0.40 (1-4) | |
| J Front wheel centre to carriage | 1.68 (5-6) | |
| K Rear wheel centre to rear face | 1.37 (4-6) | |
| Overall width with stabilisers fully deployed | 2.57 (8-5) | |
| Outside turn radius (over tyres) | 3.75 (12-4) | |
| Carriage roll back angle @ ground level | 37.0° | |
| Carriage dump angle @ boom fully raised | 12.5° | |
| Weight | 9720 kg (21429 Ib) | |
| Tyres | 15.5 / 80-24 |
| Lift Performance: STABILISERS EXTENDED | ||
| Maximum lift capacity | 3500 kg (7716 Ib) | |
| Lift capacity to full height | 3500 kg (7716 Ib) | |
| Lift capacity at full reach | 1150 kg (2535 Ib) | |
| Lift Height | 12.28 metres (40-3 feet-&-inch) | |
| Reach at maximum lift height | 0.46m (1-6 ft-in) | |
| Maximum forward reach | 8.06 m (26-5 ft-in) | |
| Reach with I tonne load | 8.06 m (26-5 ft-in) | |
| Placing Height | 11.75 m (38-7 ft-in) |
| Lift Performance - STABILISERS RETRACTED | ||
| Maximum lift capacity | 3500 kg (7716 Ib) | |
| Lift capacity to full height | 1500 kg (3307 Ib) | |
| Lift capacity at full reach | 200 kg (441 Ib) | |
| Lift height | 12.07 metres (39-7 feet-inch) | |
| Reach at maximum lift height | 1.36 m (4-6 ft-in) | |
| Maximum forward reach | 8.10 m (26-7 ft-in) | |
| Reach with I tonne load | 5.31 m (17-5 ft-in) | |
| Placing Height | 11.43 m (37-5 ft-in) |
