23 tonne - Hitachi ZX 210 LC Zaxis-6 Excavator
The Hitachi ZX210 LC-6 is a 23 tonne (operating weight) tracked excavator, which we offer on a self-drive or operated basis. For our up-to-date prices please call T:01482 319480. hiredesk@headlandplant.co.uk
The information below is provided by the manufacturer. This may vary depending on the year of the machine.
HYDRAULIC EXCAVATOR
Model code : ZX210-6 / ZX210LC-6 / ZX210LCN-6
Engine rated power : 128.4 kW (ISO14396)
Operating weight : 21 600 – 23 700 kg
Bucket ISO heaped : 0.51 – 1.20 m3
ZX210LC-6.
NO COMPROMISE
The Zaxis-6 medium excavator range benefits from unique Hitachi technology.
This enables the innovative ZX210LC-6 to deliver a high level of performance without compromising on the increasing demand for operational efficiency.
Over several decades, Hitachi has built a strong reputation based on the quality
of its engineering, and the reliability and durability of its construction machinery.
The ZX210LC-6 lives up to this reputation and is suitable for a wide range of industry solutions, thanks to its incredibly versatile features.
DEMAND
PERFECTION
The Hitachi ZX210LC-6 has been designed in Japan at the world’s
biggest excavator factory for the specific needs of the European
construction industry. It has been developed to perfection using
market-leading technology to deliver exceptional productivity
at the lowest possible cost of ownership.
Easy maintenance
The engine cover can be conveniently opened up fully from the platform. This
provides easy access to the engine compartment and other components for
routine maintenance.
Durable hydraulic connection
A rubber hose fitted with a flange has been incorporated into the design of the
hydraulic return pipes. These enhance the reliability of the system and reduce the risk of oil leaks.
User-friendly fuel filter
The main fuel filter screws into place on the ZX210LC-6. This makes it easier to
replace and ensures that dust is prevented from entering the fuel circuit during routine maintenance procedures.
More efficient cooling
The expansion tank is mounted on top of the engine’s cooling system. This
revised position means that the air can be completely removed and prevents the
engine parts from overheating.
Durable design
The lower roller of the ZX210LC-6 has been redesigned to prevent mud from
entering and causing damage to the oil seal. This enhances the long-term durability of the machine.
Enhanced fuel circuit
A high performance water separator and cold fuel resistance valve are integrated
into the pre-filter for added protection against moisture. In addition, a large
capacity electric fuel pump supplies an appropriate amount of fuel to the engine
for an improved performance.
Engine protection
The combustion chamber is made from stronger materials and the revised shape of the piston is designed to achieve cleaner emissions. These features will further
enhance the reliability of the engine.
Oil leak prevention
The O-rings on the control valve and swing motor are made from fluorine. This
highly durable material withstands high oil temperatures and reinforces the parts’
reliability to prevent oil leaks.
Reinforced platform
The covers on the platform walkway have been reinforced. This adds to the
high-quality and safe working environment, which provides peace of mind for the
operator
Greater flexibility
The rotary tilt and tilt modes are included within the attachment support system on the ZX210LC-6. These and nine other modes can be registered on the monitor
for the easy fitment of attachments to increase versatility.
Power boost
The tried-and-tested power-boost feature has 10% more capacity than the
ZX210LC-3. This increases the capability of the ZX210LC-6 to deliver an enhanced
level of excavating performance and lifting power.
User-friendly
An optional pilot accumulator allows for the pressure in the attachment circuit to be lowered after the engine has stopped. This ensures the safe and easy replacement of attachments.
Better visibility
There are fewer bars on the optional front guard and those remaining are reduced in size – yet retain their rigidity. This helps to minimise any blind spots and improves the operator’s visibility.
Machine performance
The ZX210LC-6 is equipped with two extra spools in the control valve. This increases versatility by making it easier to install attachments that require multiple, large volumes of oil and on two-piece boom models
Superior cooling performance
The upper structure benefits from high-quality sealant (around the cooling
package) and acoustic materials to eliminate any deterioration caused by heat.
These ensure the long-term cooling and low-noise acoustic performance of the
ZX210LC-6.
Excellent weather resistance
The cab console has been sculpted in highly durable AES-grade resin. This
ensures superior weather resistance and ultimately prevents the sun’s ultraviolet rays from damaging the console.
Reduced emissions
Hitachi has developed a selective catalytic reduction (SCR) system that injects urea
into exhaust gas to reduce nitrogen oxide from emissions. This cutting-edge
technology not only helps the environment, but also complies with EU Stage IV
emission regulations.
Ultimate comfort
A fully adjustable seat, spacious cab, ergonomic controls and advanced music
system all contribute to the ultimate working environment.
Safety at work
The ZX210LC-6 has been fitted with a high-spec rollover protective
structure-compliant (ROPS) and centre pillar reinforced structure (CRES V) cab.
The pressurised cab is designed to protect the operator from the penetration of dust and potential job site risks
UNIQUE
TECHNOLOGY
Hitachi Zaxis-6 medium excavators benefit from unique Hitachi
technology, developed to maximise efficiency and improve overall
performance. Examples of this can be found in every part of the
ZX210LC-6, from the engine and hydraulics, to inside the cab. This
emphasis on technology sets Hitachi apart from the competition.
Saving fuel and costs

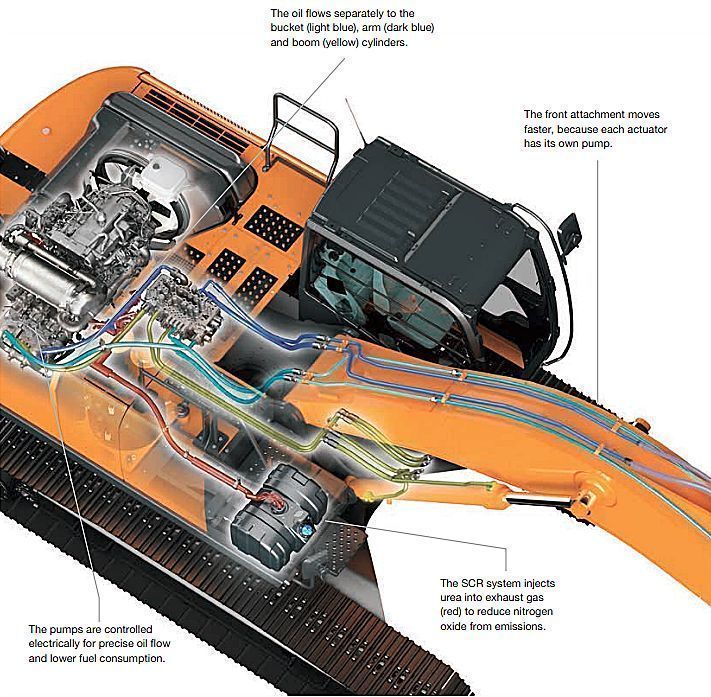

Hydraulic loss is decreased by TRIAS II technology. It reduces the hydraulic oil
returned to the tank due to the cooperative control of the pump and valve. This helps to lower fuel consumption by 8% in ECO mode with the same productivity.
User-friendly functionality
A large seven-inch multi-function LCD monitor provides a wide range of useful
technical information. With multi-lingual support in up to 32 languages, it enables
operators to check the machine’s status and settings at a glance.
Remote monitoring
Global e-Service allows owners to monitor their fleets remotely via Owner’s Site (24/7 online access) and ConSite (an automatic monthly report). These help to maximise efficiency, minimise downtime and improve overall performance.
Fewer emissions
The after-treatment device consists of a diesel oxidation catalyst (DOC), urea
mixing pipe, SCR system and silencer. This advanced technology helps to reduce
emissions and noise levels.
Advanced audio system
The AM/FM radio is accessible from the monitor and an auxiliary socket –
for devices such as MP3 players – is linked to the sound system. This choice
of entertainment helps to provide an enjoyable – and productive – working
environment
BUILDING A BETTER FUTURE
Established in 1910, Hitachi, Ltd. was built upon a founding philosophy of making a positive
contribution to society through technology. This is still the inspiration behind the Hitachi group’s
reliable solutions that answer today’s challenges and help to create a better world.
Hitachi, Ltd. is now one of the world’s largest corporations, with a vast range of innovative products
and services. These have been created to challenge convention, improve social infrastructure and
contribute to a sustainable society
Hitachi Construction Machinery Co., Ltd. (HCM) was founded in 1970 as a
subsidiary of Hitachi, Ltd. and has become one of the world’s largest construction
equipment suppliers. A pioneer in producing hydraulic excavators, HCM
also manufactures wheel loaders, rigid dump trucks, crawler cranes and special
application machines at state-of-the-art facilities across the globe.
Incorporating advanced technology, Hitachi construction machinery has a reputation for the highest quality standards. Suitable for a wide range of industries, it is always hard at work around the world – helping
to create infrastructure for a safe and comfortable way of living, developing
natural resources and supporting disaster relief efforts.
Hitachi Zaxis excavators are renowned for being reliable, durable and versatile –
capable of delivering the highest levels of productivity under the most challenging of conditions. They are designed to provide owners with a reduced total cost of
ownership, and operators with the ultimate level of comfort and safety.
SPECIFICATIONS
ENGINE
Model ............................... Isuzu AR-4HK1X
Type ................................... 4-cycle water-cooled, common rail direct injection
Aspiration ........................ Variable geometry turbocharged, intercooled,
cooled EGR
Aftertreatment ............... DOC and SCR system
No. of cylinders ............. 4
Rated power
ISO 14396 ......................... 128.4 kW at 2 000 min-1
ISO 9249, net ................... 122 kW at 2 000 min-1
SAE J1349, net ................. 122 kW at 2 000 min-1
Maximum torque ........... 670 Nm at 1 600 min-1
Piston displacement ..... 5.193 L
Bore and stroke .............. 115 mm x 125 mm
Batteries ............................. 2 x 12 V / 126 Ah
HYDRAULIC SYSTEM
Hydraulic Pumps
Main pumps ................... 3 variable displacement axial piston pumps
Maximum oil flow ........ 2 x 212 L/min
1 x 189 L/min
Pilot pump ...................... 1 gear pump
Maximum oil flow ........ 33.6 L/min
Hydraulic Motors
Travel ................................ 2 variable displacement axial piston motors
Swing ................................ 1 axial piston motor
Relief Valve Settings
Implement circuit ....... 34.3 MPa
Swing circuit ................. 32.4 MPa
Travel circuit ................. 35.5 MPa
Pilot circuit ................... 3.9 MPa
Power boost ................ 38.0 MP
Hydraulic Cylinders
| Quantity | Bore | Rod diameter | |
| Boom | 2 | 120mm | 85mm |
| Arm | 1 | 135mm | 95mm |
| Bucket | 1 | 115mm | 80mm |
| Positioning * | 1 | 150mm | 100mm |
| * : For 2-piece boom | |||
UPPERSTRUCTURE
Revolving Frame
D-section frame for resistance to deformation.
Swing Device
Axial piston motor with planetary reduction gear is bathed in oil. Swing circle
is single-row. Swing parking brake is spring-set/hydraulic-released disc type.
Swing speed ................ 11.8 min-1
Swing torque ................ 68 kNm
Operator's Cab
Independent spacious cab, 1 005 mm wide by 1 675 mm high,
conforming to ISO* Standards.
* International Organization for Standardization
UNDERCARRIAGE
Tracks
Tractor-type undercarriage. Welded track frame using selected materials.
Side frame welded to track frame. Lubricated track rollers, idlers, and
sprockets with floating seals.
Track shoes with triple grousers made of induction-hardened rolled alloy.
Heat-treated connecting pins with dirt seals. Hydraulic (grease) track
adjusters with shock-absorbing recoil springs.
Numbers of Rollers and Shoes on Each Side
Upper rollers ................ 2
Lower rollers ................ 7 : ZAXIS 210
8 : ZAXIS 210LC / ZAXIS 210LCN
Track shoes .................. 46 : ZAXIS 210
49 : ZAXIS 210LC / ZAXIS 210LCN
Track guards ................ 2
Travel Device
Each track driven by 2-speed axial piston motor.
Parking brake is spring-set/hydraulic-released disc type.
Automatic transmission system: High-Low.
Travel speeds ............... High : 0 to 5.5 km/h
Low : 0 to 3.5 km/h
Maximum traction
force ............................ 203 kN
Gradeability .................. 70% (35 degree) continuous
SOUND LEVEL
Sound level in cab according to ISO 6396 ................................ LpA 69 dB(A)
External sound level according to ISO 6395 and
EU Directive 2000/14/EC .......... LwA 101 dB(A) : ZAXIS 210 / ZAXIS 210LC
LwA 102 dB(A) : ZAXIS 210LCN
SERVICE REFILL CAPACITIES
Fuel tank ................................................ 400.0 L : ZAXIS 210 / ZAXIS 210LC
330.0 L : ZAXIS 210LCN
Engine coolant .......................................... 28.0 L
Engine oil ................................................. 23.0 L
Swing device ............................................. 6.2 L
Travel device (each side) ............................ 6.8 L
Hydraulic system ................................... 240.0 L : ZAXIS 210 / ZAXIS 210LC
220.0 L : ZAXIS 210LCN
Hydraulic oil tank ................................... 135.0 L : ZAXIS 210 / ZAXIS 210LC
115.0 L : ZAXIS 210LCN
DEF/AdBlue® tank .................................. 57.0 L : ZAXIS 210 / ZAXIS 210LC
35.0 L : ZAXIS 210LCN
WEIGHTS AND GROUND PRESSURE
Operating Weight and Ground Pressure
| ZAXIS 210 *1 | ||||||
| Boom type | Monoblock | 2-Piece | ||||
| Shoe type | Shoe width | Arm length | kg | kPa | kg | kPa |
| Triple grouser |
600 mm | 2.03m | 21,600 | 48 | 22,200 | 50 |
| 2.42m | 21,600 | 48 | 22,300 | 50 | ||
| 2.91m | 21,700 | 49 | 22,300 | 50 | ||
| 700 mm | 2.03m | 21,800 | 42 | 22,400 | 43 | |
| 2.42m | 21,900 | 42 | 22,500 | 43 | ||
| 2.91m | 21,900 | 42 | 22,600 | 43 | ||
| 800 mm | 2.03m | 22,100 | 37 | 22,700 | 38 | |
| 2.42m | 22,100 | 37 | 22,800 | 38 | ||
| 2.91m | 22,200 | 37 | 22,800 | 38 | ||
| 900 mm | 2.03m | - | - | - | - | |
| 2.42m | - | - | - | - | ||
| 2.91m | - | - | - | - | ||
| ZAXIS 210LC *1 | ||||||
| Boom type | Monoblock | 2-Piece | ||||
| Shoe type | Shoe width | Arm length | kg | kPa | kg | kPa |
| Triple grouser |
600 mm | 2.03m | 22,100 | 46 | 22,700 | 47 |
| 2.42m | 22,200 | 46 | 22,800 | 47 | ||
| 2.91m | 22,200 | 46 | 22,900 | 47 | ||
| 700 mm | 2.03m | 22,400 | 40 | 23,000 | 41 | |
| 2.42m | 22,400 | 40 | 23,100 | 41 | ||
| 2.91m | 22,500 | 40 | 23,100 | 41 | ||
| 800 mm | 2.03m | 22,700 | 35 | 23,300 | 36 | |
| 2.42m | 22,700 | 35 | 23,400 | 36 | ||
| 2.91m | 22 800 | 35 | 23,400 | 36 | ||
| 900 mm | 2.03m | 23,000 | 31 | 23,600 | 32 | |
| 2.42m | 23,000 | 31 | 23,700 | 32 | ||
| 2.91m | 23,100 | 32 | 23,700 | 32 | ||
| ZAXIS 210LCN *2 | ||||||
| Boom type | Monoblock | 2-Piece | ||||
| Shoe type | Shoe width | Arm length | kg | kPa | kg | kPa |
| Triple grouser |
500 mm | 2.03m | 21,500 | 54 | 22,100 | 55 |
| 2.42m | 21,600 | 54 | 22,200 | 55 | ||
| 2.91m | 21,600 | 54 | 22,300 | 56 | ||
| 600 mm | 2.03m | 21,700 | 45 | 22,300 | 46 | |
| 2.42m | 21,800 | 45 | 22,400 | 47 | ||
| 2.91m | 21,900 | 46 | 22,500 | 47 | ||
*1 Including 0.80 m3 (ISO heaped) bucket weight (660 kg) and counterweight (4 850 kg).
*2 Including 0.80 m3 (ISO heaped) bucket weight (660 kg) and counterweight (4 700 kg).
Basic Machine Weight and Overall Width
Excluding front end attachment, fuel, hydraulic oil and coolant etc. Including counterweight.
Components Weight
| Counterweight : ZAXIS 210 / ZAXIS 210LC | 4 850 kg |
| Counterweight : ZAXIS 210LCN | 4 700 kg |
| Monoblock boom (with arm cylinder and boom cylinder) | 2 210 kg |
| 2-Piece boom (with arm cylinder and boom cylinder) | 2 930 kg |
| Arm 2.03 m (with bucket cylinder) | 890 kg |
| Arm 2.42 m (with bucket cylinder) | 960 kg |
| Arm 2.91 m (with bucket cylinder) | 1 030 kg |
| Bucket 0.80 m³ | 660 kg |
| ZAXIS 210 | ||
| Shoe width | Weight | Overall width |
| 600 mm | 17,100 kg | 2 860 mm |
| 700 mm | 17,300 kg | 2 910 mm |
| 800 mm | 17,600 kg | 3 000 mm |
| ZAXIS 210LC | ||
| Shoe width | Weight | Overall width |
| 600 mm | 17,600 kg | 2,990 mm |
| 700 mm | 17,900 kg | 3,090 mm |
| 800 mm | 18,200 kg | 3,190 mm |
| 900 mm | 18,500 kg | 3,290 mm |
| ZAXIS 210LCN | ||
| Shoe width | Weight | Overall width |
| 500 mm | 17,200 kg | 2,500 mm |
| 600 mm | 17,400 kg | 2,580 mm |
BUCKET AND ARM DIGGING FORCE
| ZAXIS 210 | ZAXIS 210LC | ZAXIS 210LCN | |
| Arm length | 2.03 m | 2.42 m | 2.91 m |
| Bucket digging force* ISO | 158 kN | ||
| Bucket digging force* SAE : PCSA | 141 kN | ||
| Arm crowd force* ISO | 152 kN | 140 kN | 114 kN |
| Arm crowd force* SAE : PCSA | 144 kN | 133 kN | 110 kN |
* At power boost
SPECIFICATIONS
WORKING RANGES: MONOBLOCK BOOM
| Unit: mm | |
| ZAXIS 210 / ZAXIS 210LC / ZAXIS 210LCN | |
| Monoblock boom |
| Arm length | 2.03 m | 2.42 m | 2.91 m |
| A Max. digging reach | 9 230 | 9 430 | 9 920 |
| A’ Max. digging reach (on ground) | 9 040 | 9 250 | 9 750 |
| B Max. digging depth | 5 800 | 6 180 | 6 670 |
| B’ Max. digging depth for 2.5 m level | 5 580 | 5 950 | 6 490 |
| C Max. cutting height | 9 850 | 9 670 | 10 040 |
| D Max. dumping height | 6 940 | 6 830 | 7 180 |
| D’ Min. dumping height | 3 630 | 3 200 | 2 650 |
| E Min. swing radius | 3 410 | 3 280 | 3 180 |
| F Max. vertical wall digging depth | 5 210 | 5 300 | 5 990 |
Excluding track shoe lug
DIMENSIONS
| Unit: mm | |||
| ZAXIS 210 | ZAXIS 210LC | ZAXIS 210LCN | |
| A Distance between tumblers | 3370 | 3 660 | 3 660 |
| B Undercarriage length | 4 170 | 4 460 | 4 460 |
| *C Counterweight clearance | 990 | 990 | 990 |
| D Rear-end swing radius | 2 890 | 2 890 | 2 890 |
| D’ Rear-end length | 2 890 | 2 890 | 2 890 |
| E Overall width of upperstructure | 2 710 | 2 710 | 2 480 |
| F Overall height of cab | 2 950 | 2 950 | 2 950 |
| F’ Overall height of upperstructure | 3 020 | 3 020 | 3 020 |
| *G Min. ground clearance | 450 | 450 | 450 |
| H Track gauge | 2 200 | 2 390 | 1 980 |
| I Track shoe width | G 600 | 2 390 | G 500 |
| J Undercarriage width | 2 800 | 2 990 | 2 480 |
| K Overall width | 2 860 | 2 990 | 2 500 |
| *L Track height with triple grouser shoes | 920 | 920 | 920 |
| MONOBLOCK BOOM | |||
| M Overall length | |||
| With arm 2.03 m | 9 750 | 9 750 | 9 750 |
| With arm 2.42 m | 9 750 | 9 750 | 9 750 |
| With arm 2.91 m | 9 660 | 9 660 | 9 660 |
| N Overall height of boom | |||
| With arm 2.03 m | 3 150 | 3 150 | 3 150 |
| With arm 2.42 m | 3 180 | 3 180 | 3 180 |
| With arm 2.91 m | 2 940 | 2 940 | 2 940 |
* Excluding track shoe lug G: Triple grouser shoe

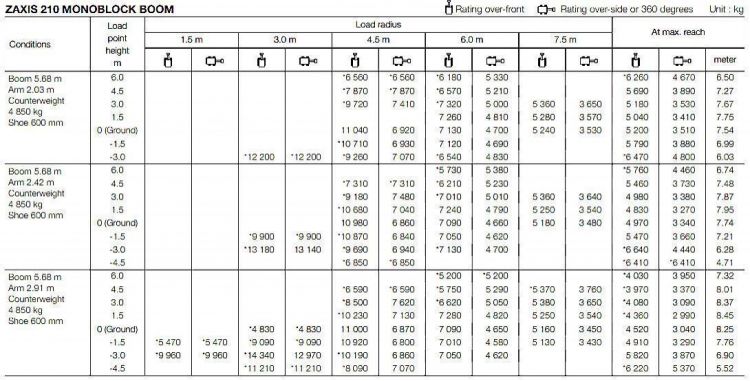

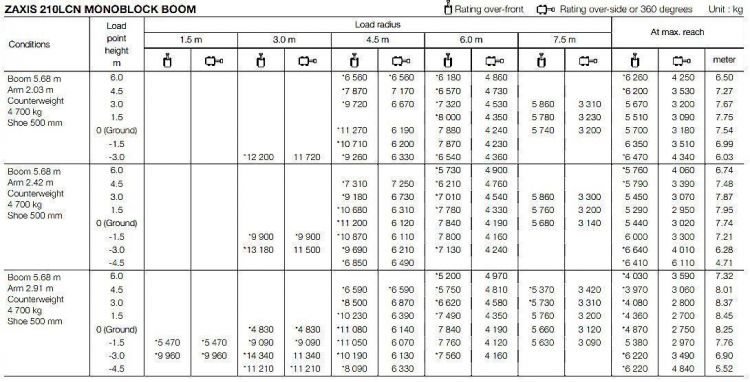

LIFTING CAPACITIES
Notes: 1. Ratings are based on ISO 10567.
2. Lifting capacity does not exceed 75% of tipping load with the machine on firm,
level ground or 87% full hydraulic capacity.
3. The load point is the center-line of the bucket pivot mounting pin on the arm.
4. *Indicates load limited by hydraulic capacity.
5. 0 m = Ground.
For lifting capacities, subtract bucket and quick hitch weight from lifting capacities.
