3 tonne JCB 930 Forklift

3 Tonne Lift
Operating Weight      6340 kg      (13977 Ib)
Lift Capacity               3.0 tonne   (6613 Ib)

 Self Drive Hire

Delivery for self drive hire is available next working day to areas including Grimsby, Scunthorpe, Immingham, Hull,  Lincoln, Scarbough, Sheffield, Doncaster, Castleford, Goole, Selby and York.

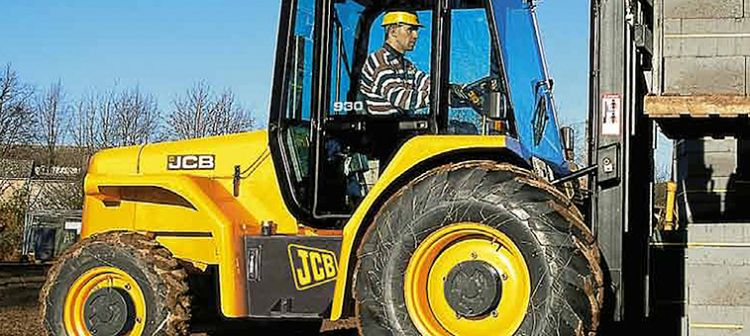

The 6340Kg JCB RTFL is powered by a highly efficient 55kW Dieselmax engine and has a 3000Kg lift capacity.

JCB's Synchro Shuttle transmisson gives fast, smooth directional changes and a sideshift feature means you can accurately place materials on scaffolding.

To ensure maximum productivity, al JCB forklifts are tuned to provide maximum performance.

A 55kW JCB Diesel engine is at the heart of everything, producing high power and torque at low revs for fuel savings and an 18MPH top speed.

JCB forklifts are designed for excellent forward visibility and there's a full 18° of forward mast tilt. Then there's sideshift, choice of attachments, and hydroststic power streering.

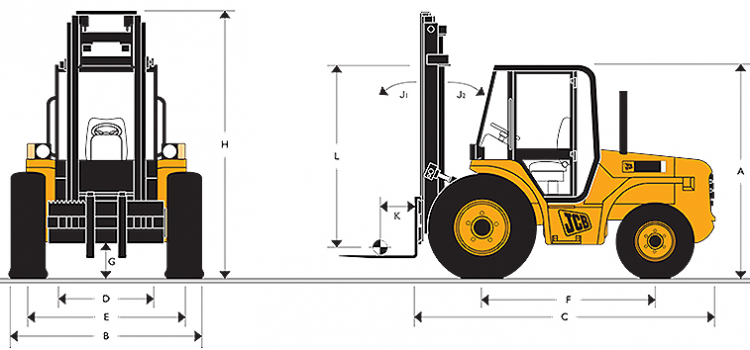

  A      Overall cab height 2.57          (8-5)
  B      Overall width (over tyres) 2.20          (7-2.1/2)
  C      Overall length to front carriage (industrial or bar) 3.60          (11-10)
  D      Inside width of cab 1.16          (3-9.1/2)
  E      Front track 1.80          (5-11)
  F      Wheel base 2.13          (7-0)
  G      Ground clearance 0.37          (1-2.1/2)

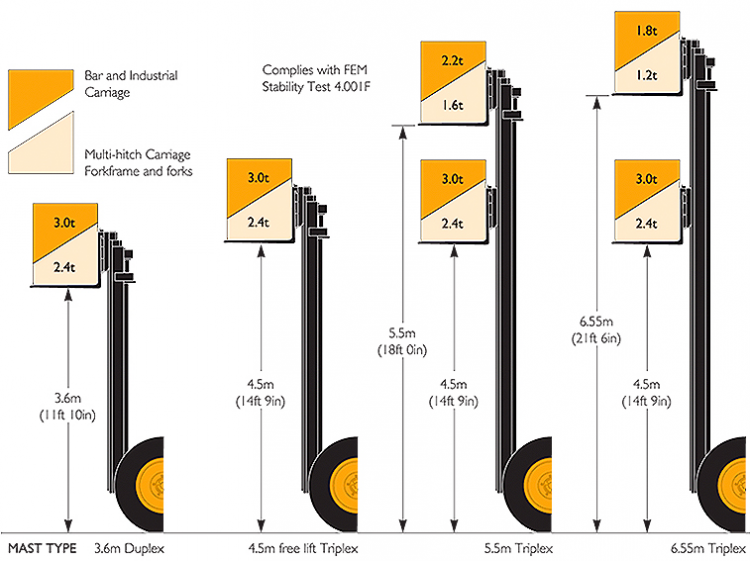

  H      Mast closed height
          3.6m  mast 2.95          (9-8)
          4.5m  mast  2.41          (7-10)
          5.5m  mast 2.95          (9-8)
          6.55m mast 3.32          (10-11)
          Mast open height
          3.6m  mast 4.78          (15-8)
          4.5m  mast 5.41          (17-9)
          5.5m  mast 6.61          (21-8)
          6.55m mast 7.67          (25-2)
  J1    Mast tilt forwards 18°
  J2    Mast tilt backwards 10°
  K     Load centre 0.50          (1-8)
  L     Free lift (4.5m mast only) 1.46          (4-9.1/2)
