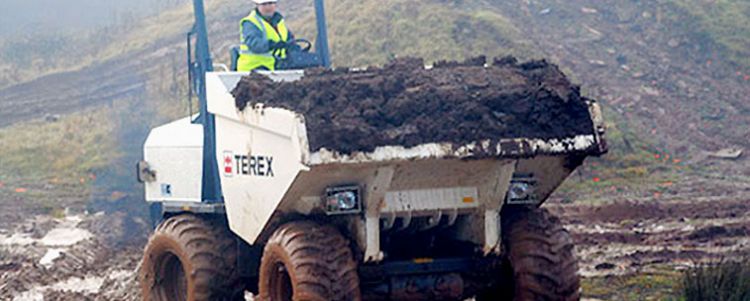

9 tonne Terex Dumper

Front Tip



Self Drive Hire

Delivery for self drive hire is available next working day to areas including Sheffield, Doncaster, Hull, Scunthorpe, Immingham, Grimsby, Lincoln, Castleford, Goole, Selby, York and Scarbrough.

Manufactures Info   Terex site dumpers can handle the most difficult operating conditions thanks to their robust design.  These site dumpers deliver exceptional power when needed and can access the narrowest of construction sites.

Specification

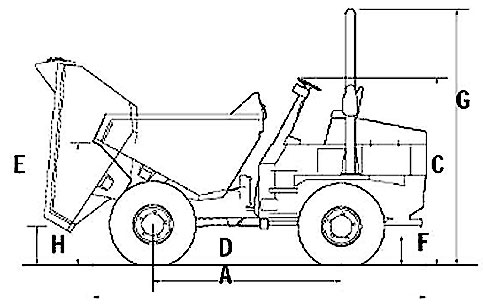

  Dimensions millimetres
  A     Total length       4330
  B     Total width (not shown)       2500
  C     Height to top of steering wheel       2530
  D     Wheelbase       2450
  E     Height to front lip of skip (untipped)       1722
  F     Ground clearance       410
  G     Height to top of ROPS (raised)       3342
  H     Height to front lip of skip (tipped)       430
         Turning radius to outside of skip       6000
         Steering angle +/- 30°
         Oscillation +/- 10°



  Model Engine kW (hp) @ rpm Alternator Output Amps Batter Cold Start Amps
  9000 Cummins 4BT 4.5 74 (99) @ 2000 Belt Driven 95 Type 072 DIN 340A - IEC 420A



  Gearbox Transfer Box 1st Gear 2nd Gear 3rd Gear 4th Gear Reverse
  ITL PowerShuttle D3000 5.3 kph  (3.3 mph) 8.6 kph  (5.3 mph) 15.8 kph  (9.8 mph) 28 kph  (17.4 mph) as forward



  Fluid Capacities  litres (pints)
  Engine Sump Gearbox Transfer Box Axle Front Axle Rear Fuel Tank Hydraulic Tank Brake Fluid Coolant
  10.00  (21.1) 13.00 (27.5) 0.86 (1.82) 15.00 (31.7) 15.00 (31.7) 67.00 (141.6) 50.00 (105.7) 1.20 (2.5) 20 (42.3)



  Load Capacities
  Payload - kg Payload - Ibs Water Level - litres (yd.3) Struck Level - litres (yd.3) Heaped - litres (yd.3)
  9000 19,800 2438 (3.2) 3,821 (4.99) 4560 (5.96)



  Wheels and Tyres
  Model Tyre Spec / Capacity Front Tyre Rear Tyre Wheel Nut Torque
  9000 500/60 x 22.5 4.4 bar (63 psi) 2.2 bar (32 psi) 450 Nm (332 Ibft)



  Noise Levels
  Model Engine LWA Sound Power Level LPA Operator Ear
  9000 Cummins 4BT4.5 103 dB(A) 82.7 dB(A)
